IEC 62196-1 Misalignment tester
Détails sur le produit:
| Place of Origin: | China |
| Nom de marque: | Kingpo |
| Certification: | Calibration Certificate |
| Model Number: | KP-CD213 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | To be Quoted |
| Détails d'emballage: | paquet de carton de sécurité ou boîte de contreplaqué |
| Délai de livraison: | 35 jours ouvrables |
| Payment Terms: | T/T |
| Capacité d'approvisionnement: | 1000 ensembles par mois |
|
Détail Infomation |
|||
| Standard: | La norme IEC 62196-1-clause 36 est modifiée.3 | but du test: | Testeur de désalignement des prises |
|---|---|---|---|
| test sample: | charge gun | Force: | 100N |
| voltage: | 220V | Station d'essai: | 3 |
Description de produit

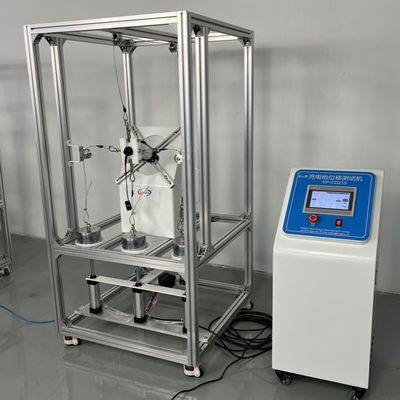

IEC 62196-1 Misalignment tester
Standard: according to IEC62196-1:2022-clause 36.3
Application: It is used to test whether electrical accessories with electronic locking devices such as electric vehicle charging interfaces, industrial plugs and sockets and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects. To verify its reliability.
Usage environment: Power supply: AC220V±10%/50-60Hz, 0.5Kw, working temperature 0-40℃, humidity 30%-90%.
| Dimensions | W1000*D1000*H1700mm; weight: about 100kg |
| Station | 3 station |
| Electrical control method | Mitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation |
| Operation mode | Manual or program-controlled operation |
| test times | 0-9999 |
| Drive mode | Pneumatic |
| force | 100N |
| remove time | 0-9999s |
| load time | 0-9999s |
| power | 220V 50/60HZ |
